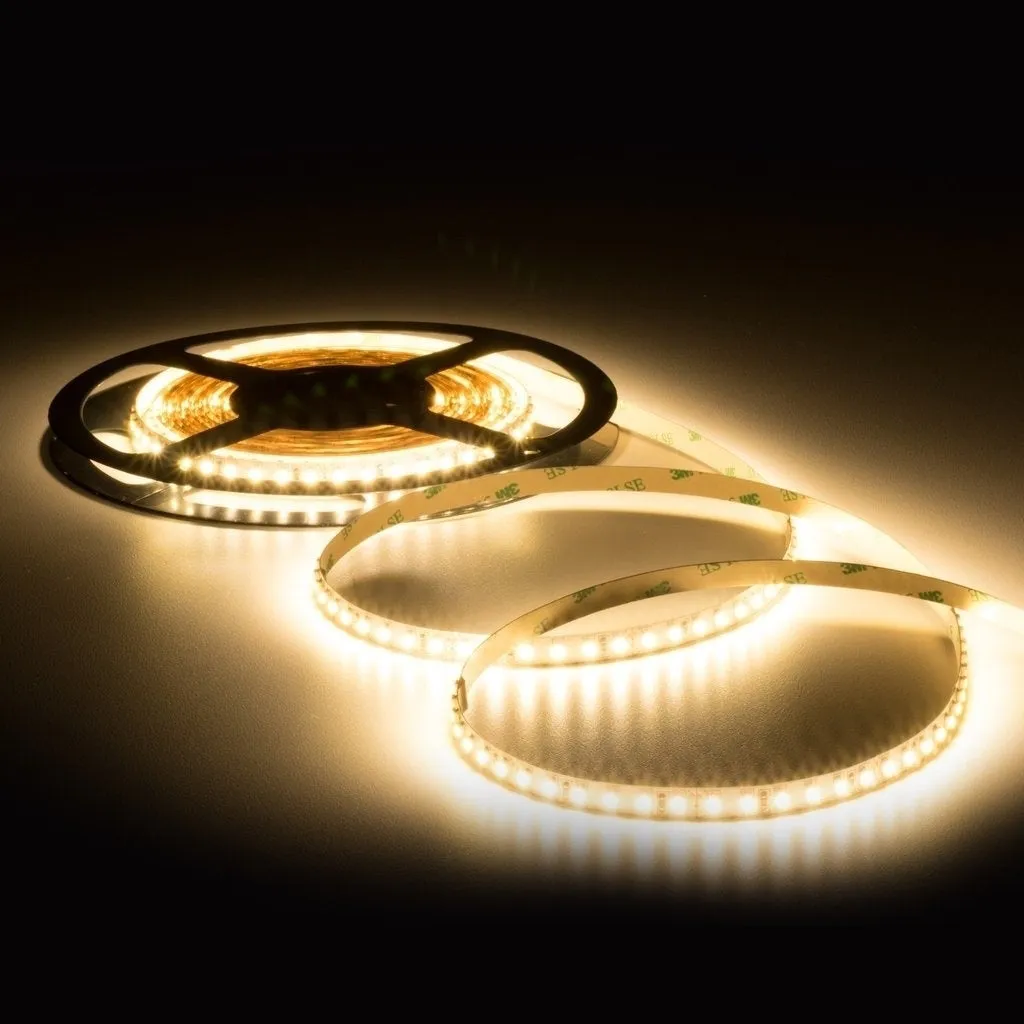

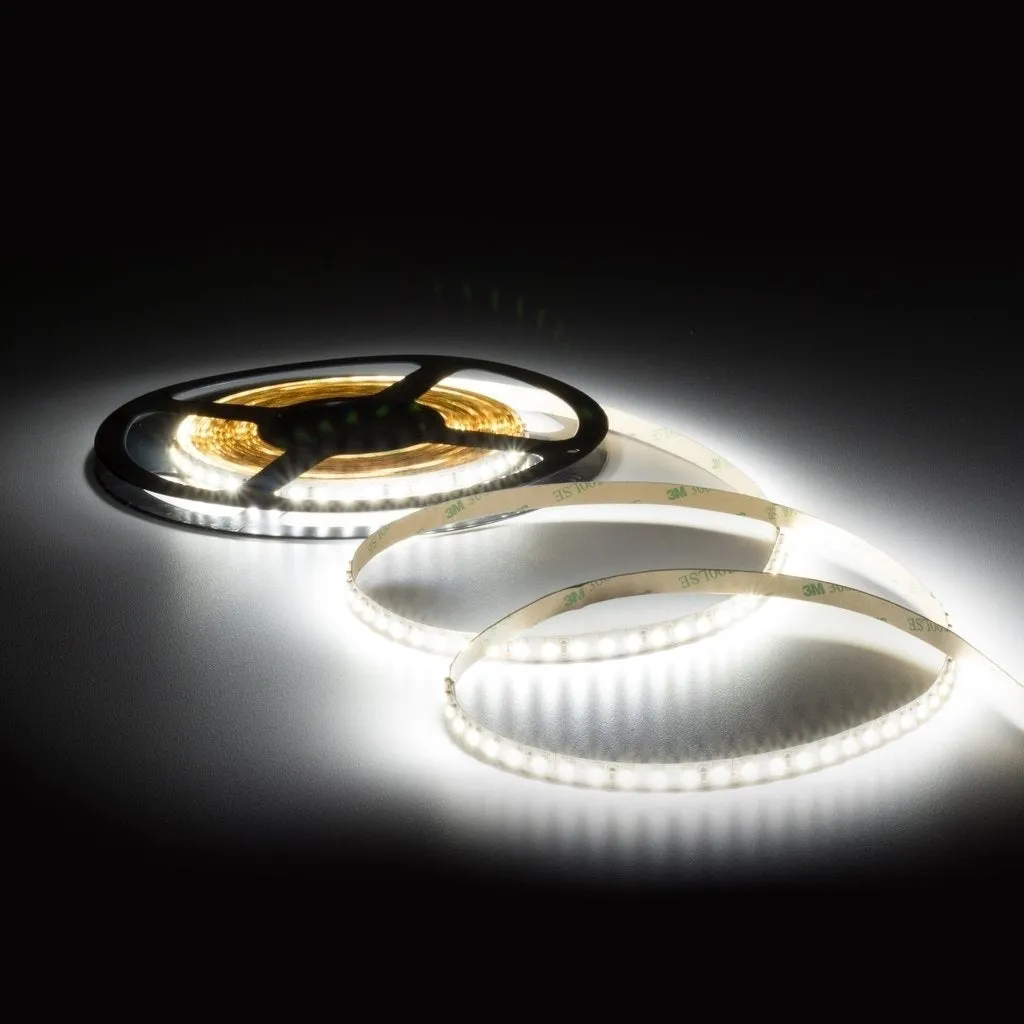

The 24V DC LED 3mm wide Mini High Output Tape Lights are made with commercial-grade SMD 2216 Chipsets with 42 LED Chips per foot length. The ultra-thin LED strips feature 85 CRI with high output and even illumination and are perfectly designed for tradeshow decoration, exhibition lighting, retail display lighting, back-lighting applications, and more.
The 24V DC LED 3mm Mini High Output Strip Lights are fully dimmable when used with LED Dimmable Drivers. It is UL listed to ensure the durability and safety of the LED tape light's lifespan.

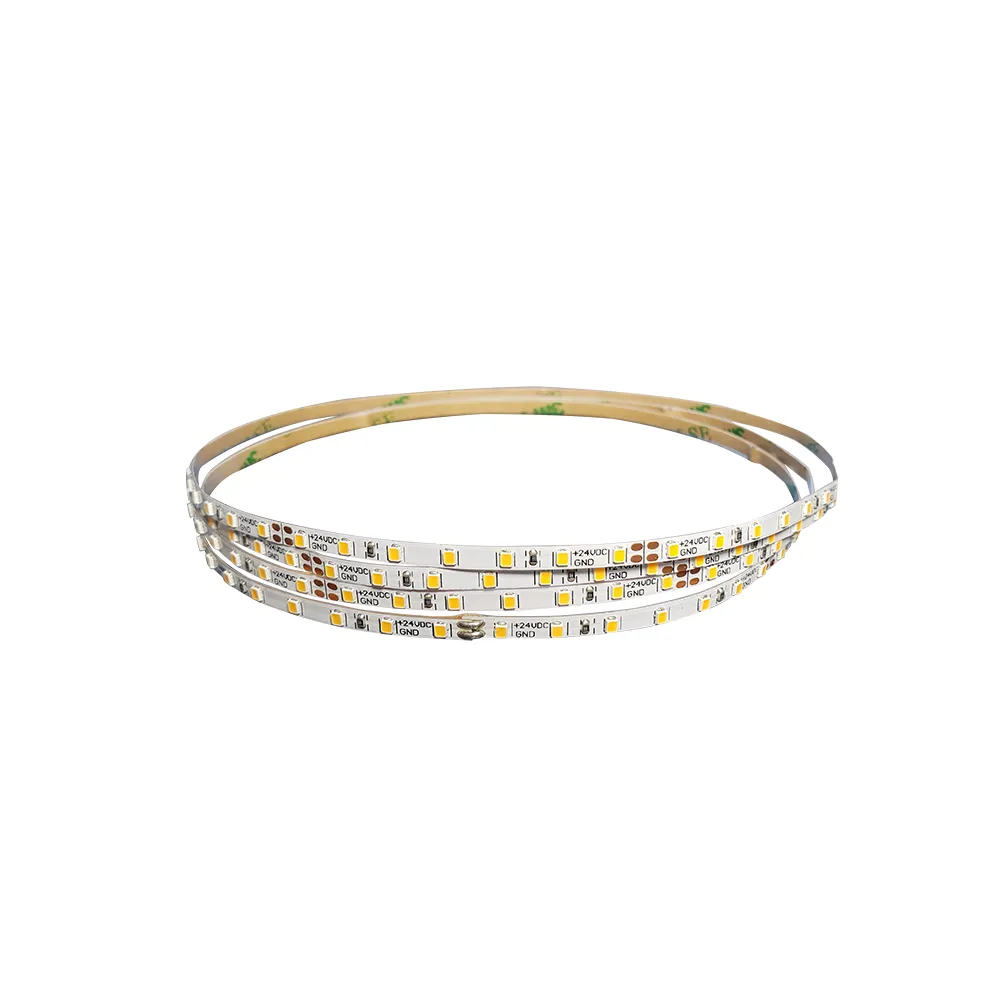

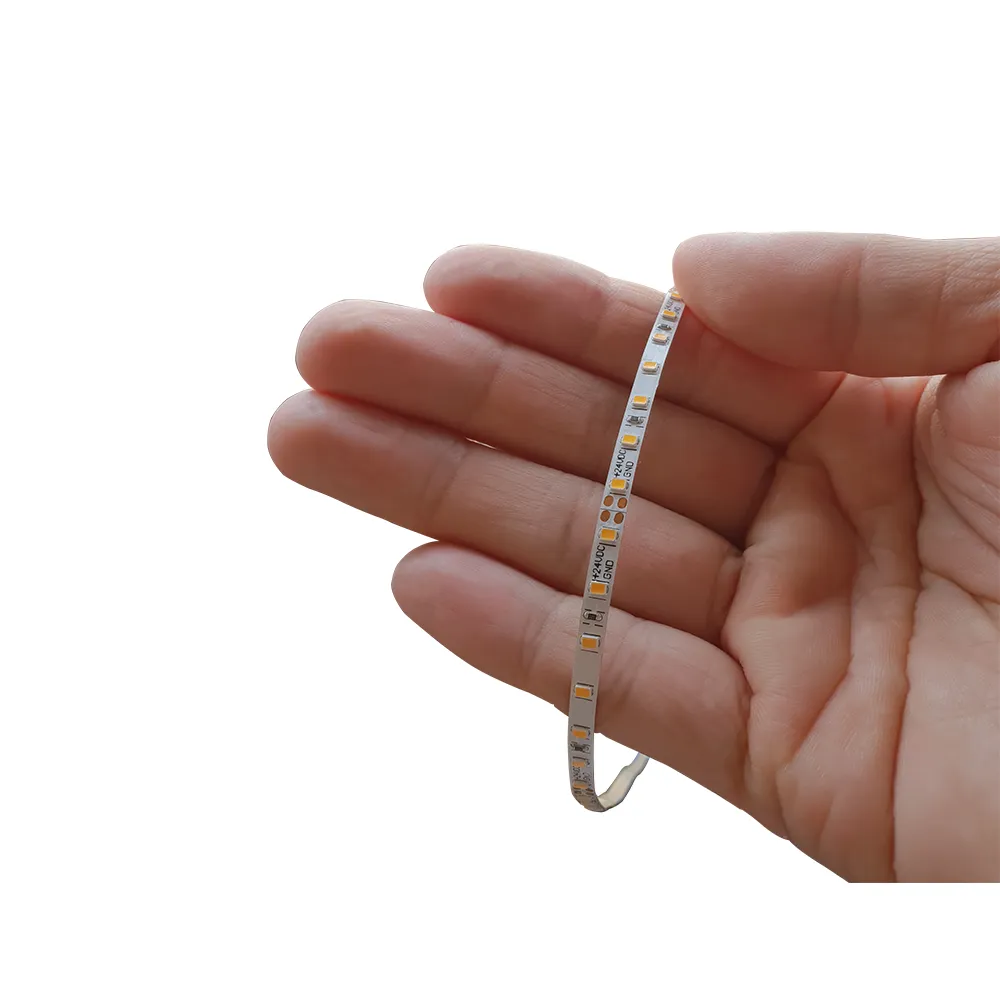

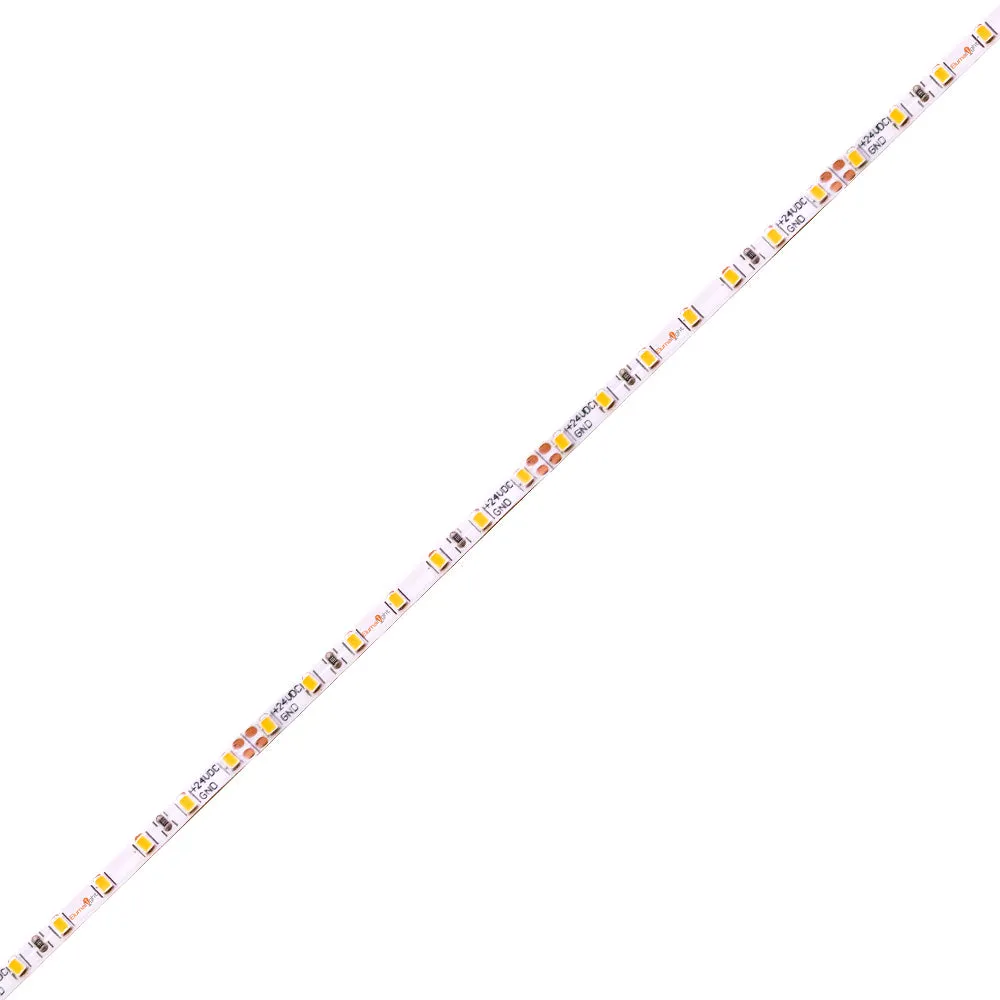

The Ultra-Thin 3mm wide LED Strips are made with wire leads on the ends of each reel and can be cut every 2 inches at its cut marking points, allowing you to cut pieces to the length desired. Sold in 16 ft reels. Hard-wiring and soldering upon installation.
* Required: Requires a or 24V DC driver.
Key Features
- Maintenance-free
- Solid-State Construction
- High shock and Vibration Resistance
- SMD 2216 LED Chips are high-intensity, ultra-bright, and energy-efficient
- No RF interference
- Up to 50,000 hours of Lifespan
- UL, ETL Listed
Applications
- Decorative Lighting for Tradeshows, Exhibition, Retail Displays
- Architectural lighting for corridors, canopies, archways, or windows
- Downlighting or Up-lighting Applications
- Backlighting or Edge-Lighting
- Under-cabinet, Under-Counter, or cove lighting
- Custom DIY projects
Specifications
- Brightness: 235 Lumens/ft, 770.8 Lumens/meter
- Power: 2.4 watt/ft, 7.8 watt/meter
- Input Voltage: 24V DC
- LED CCT: 2700K, 3000K, or 6000K options
- CRI: 90
- Environment: IP20 Dry Location
- Beam Angle: 120°
- LED Density: 42 LEDs/ft, 690 LEDs/reel
- LED Chip Size: SMD 2216
- LED Spacing: 0.29 in / 7.36 mm
- Length: 16.4 / 5 meters
- Width: 0.12 in / 3 mm wide
- Height: 0.06 in / 1.6 mm thick
- Cutting Increment: 2 in / 50.8 mm at its cut marking
- Adhesive Backing: 3M Adhesive
- Manufacturer: Elumalight
- Rating: UL, ETL, RoHS
- Avg. Lifetime: ± 30,000 - 50,000 hours
- Warranty: 3 years limited
- Power Supplies:
- Accessories:
Old SKU: STVO24-3HOCW STVO24-3HOWW STVO24-3HOXWW
