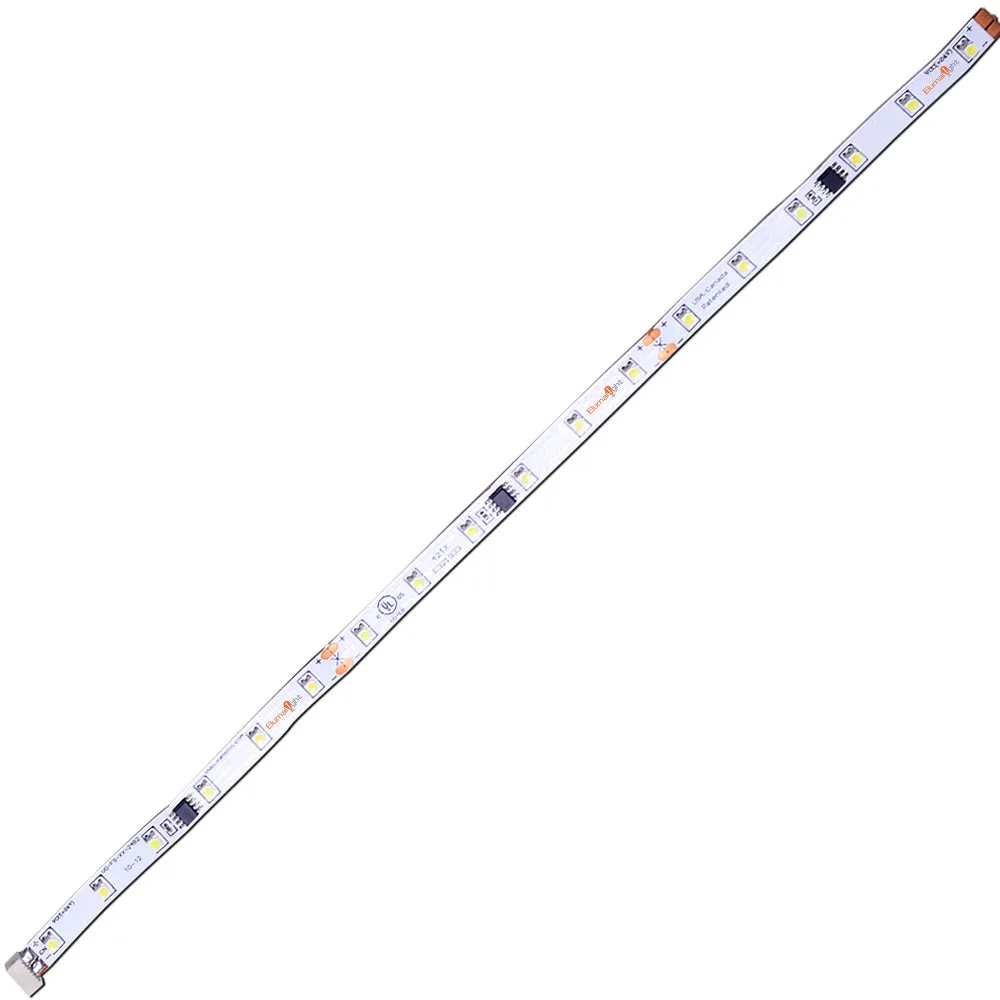

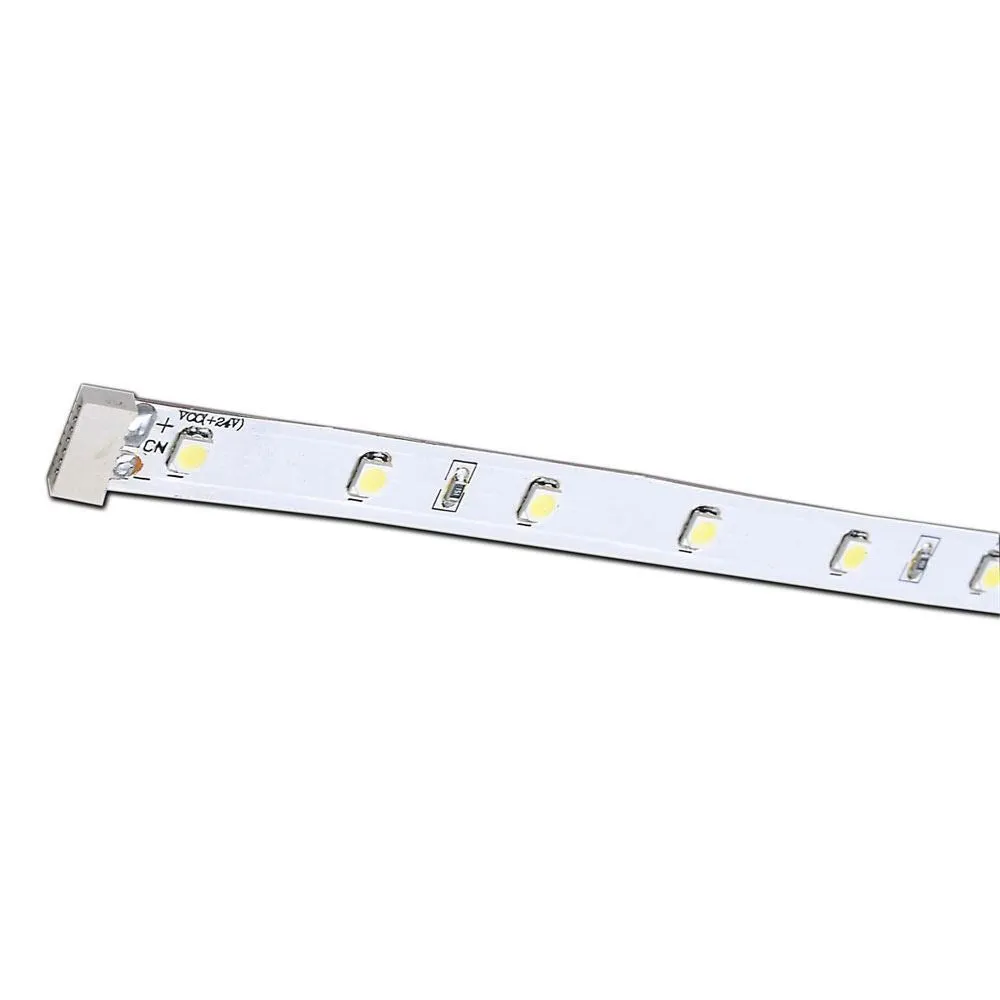

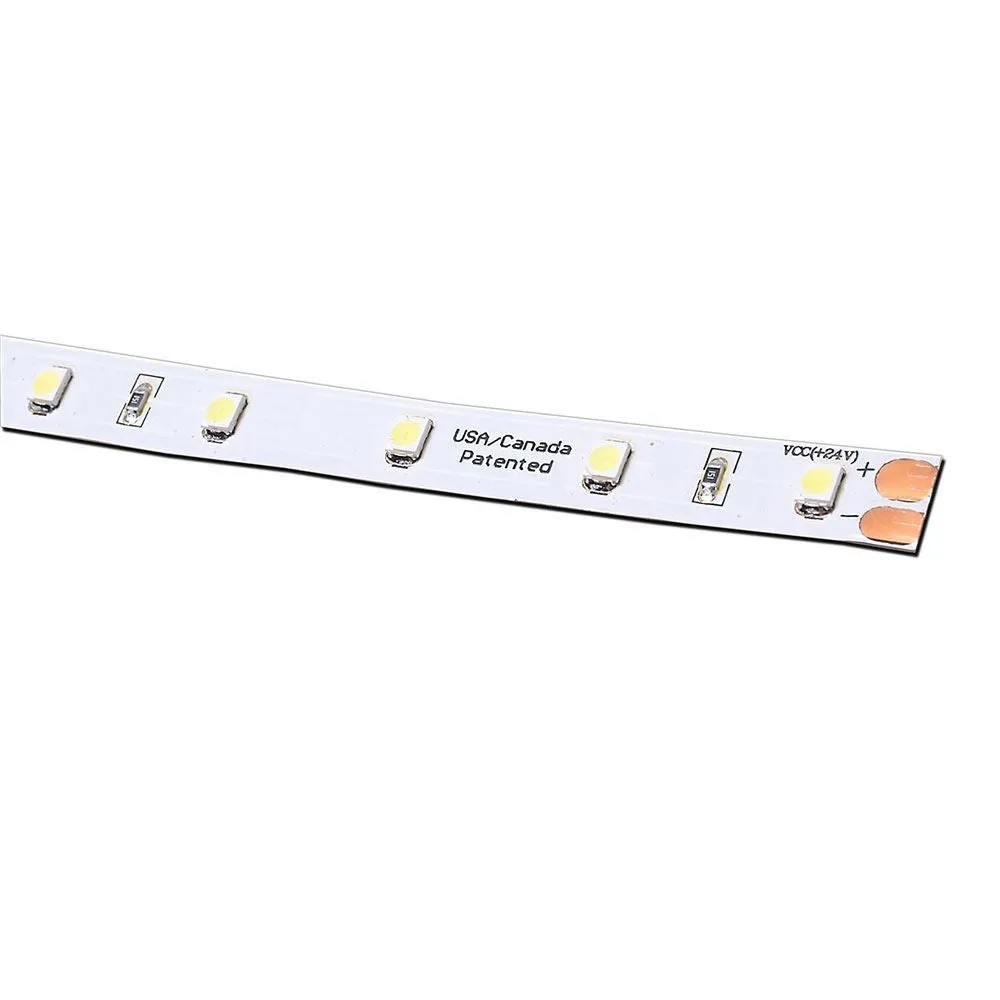

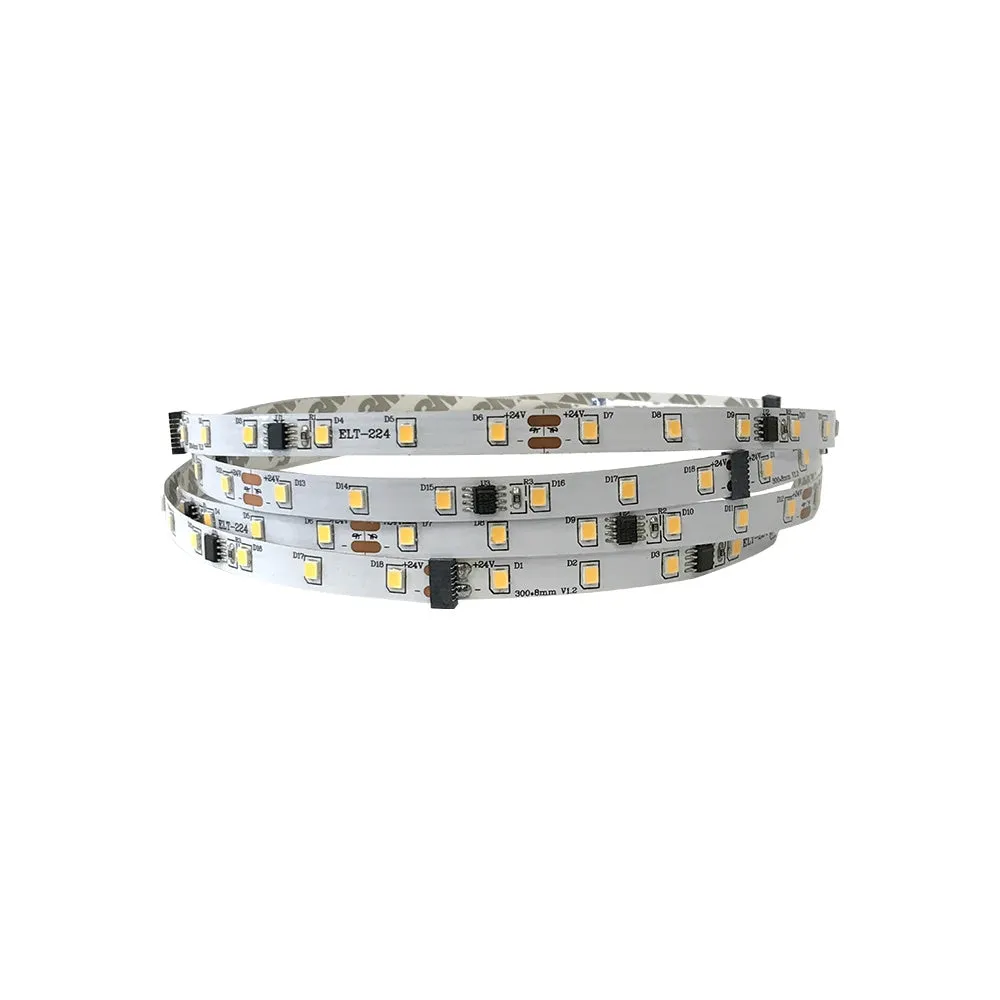

The 24V DC LED High Output Flexible Tape Lights are made with commercial-grade 5050 SMD LED Chipsets to ensure our LED strips last longer and run cooler with high consistency and even illumination. It is perfectly designed for tradeshow decoration, exhibition lighting, retail display lighting, back-lighting applications, and more.
The LED Standard Tape Light 12" Segment is fully dimmable when used with LED Dimmable Drivers. It is UL listed to ensure the durability and safety of the LED tape light lifespan.
18 LED Chips per 12" segment and cuttable every 4” on specified cut marks. Each LED strip segment can be easily connected together for a solder-free installation. Available with various CCT options to choose from. The LED Standard Tape Light gives you the freedom to easily design and install without any soldering for almost any surface or object. Price per ft segment.
* Required: Requires a or 24-volt DC driver.
Key Features
- Maintenance-free
- Solid-State Construction
- High shock and Vibration Resistance
- SMD 5050 LED Chips are high-intensity, ultra-bright, and energy-efficient
- No RF interference
- Up to 50,000 hours of Lifespan
Applications
- Decorative Lighting for Tradeshows, Exhibition, and Retail Displays
- Architectural lighting for corridors, canopies, archways, or windows
- Downlighting or Uplighting Applications
- Backlighting or Edge-Lighting
- Under-cabinet, Under-Counter, or cove lighting
- Custom DIY projects
Specifications
- Brightness: 195 Lumens/ft, 640 Lumens/meter
- Power: 2.7 watt/ft, 8.9 watt/meter
- Input Voltage: 24V DC
- LED CCT & Colors: 3000K, 4100K, or 6000K options
- CRI: 90
- Environment: IP20 Dry Location
- Beam Angle: 120°
- LED Density: 18 LEDs/ft, 300 LEDs/reel
- LED Chip Size: SMD 5050
- LED Spacing: 0.66 in / 16.7 mm
- Length: 12 in per segment.
- Width: 0.31 in / 8mm wide
- Height: 0.06 in / 1.6 mm thick
- Cutting Increment: 4 in / 100.16 mm at its cut marking
- Adhesive Backing: 3M Adhesive
- Manufacturer: Elumalight
- Rating: UL, ETL, RoHS
- Avg. Lifetime: ± 30,000 - 50,000 hours
- Warranty: 3 years limited
- Power Supplies:
- Accessories:
