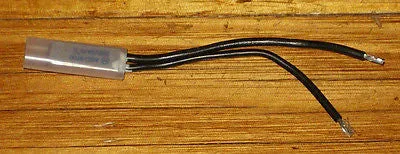

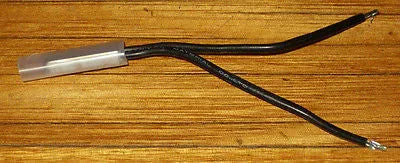

Insulated Self Resetting Thermostat For Thermal Protection of Motors, Fans, Batteries, Etc. (Various temperatures available).

Part No. KSD97-xxx (xxx is the temperature rating).

Thermostat cutout as used for over-temperature protection in many mains transformers, electric motors, battery packs, fluorescent lamp ballasts, induction cookers, etc. These can often be used to save an otherwise expensive transformer replacement and provide overcharge protection for rechargeable battery packs. Many other uses.

Dimensions of body of thermostat - 20mm X 7.3mm X 3.5mm, Lead length 65mm.

Maximum ratings - 5Ampere, 250Volt AC.

Temperatures available: 70, 80, 85, 90, 95, 100, 105, 110, 115, 120, 125, 130, 135, 140, 145 & 150 degrees celcius.

Please specify temperature required with your order/purchase.

Listing is for 1 thermostat cutout.

We have been supplying appliance parts to the trade and retail for over 25 years. Buy with confidence.
