INSTALLATION VIDEO

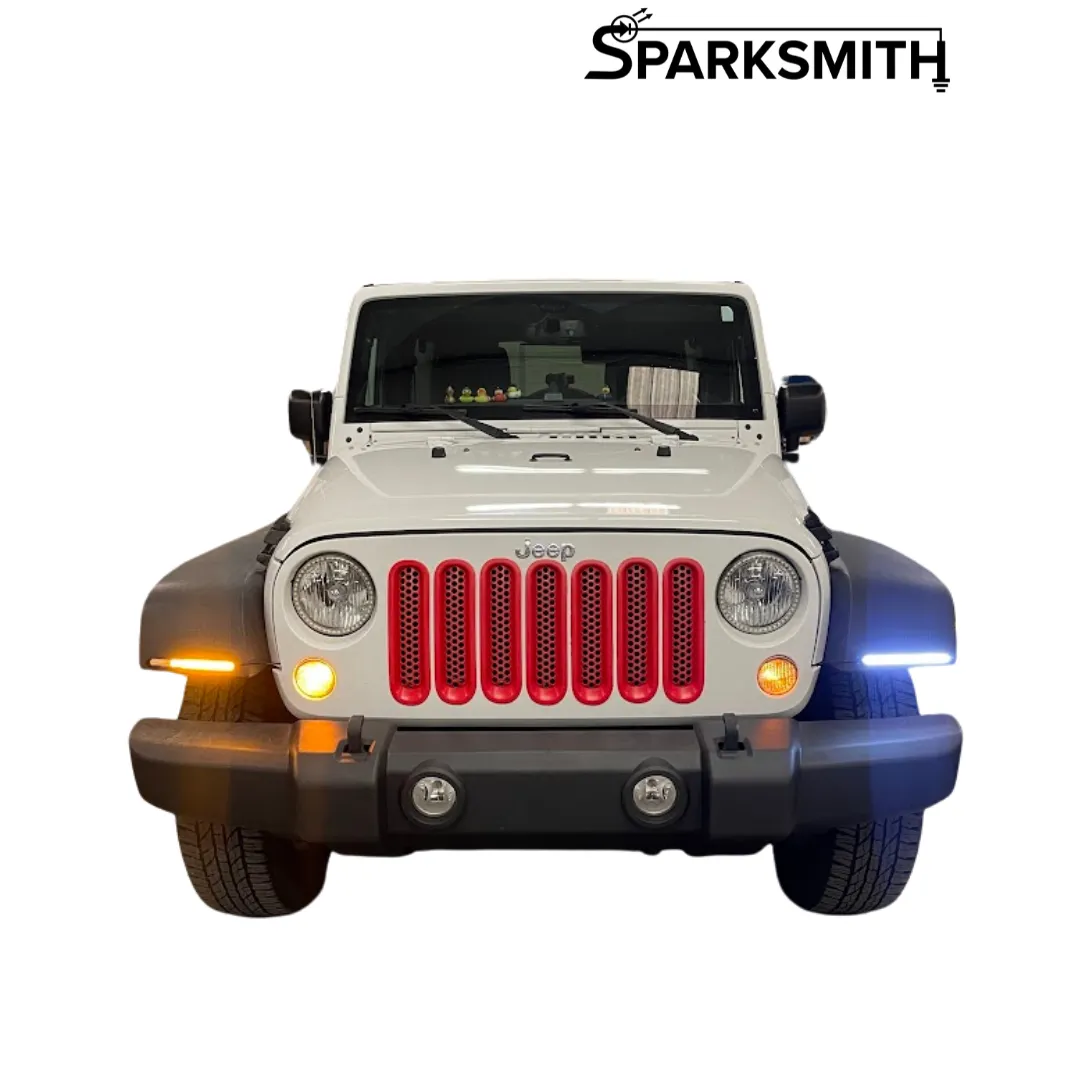

Are you looking for a sharp and eye-catching mod for your 2007-2018 JK Jeep Wrangler? Check out our Plug & Play DRL Grille Bars! Your rig already has the wiring for it, why not use it in a much more effective and dynamic way?

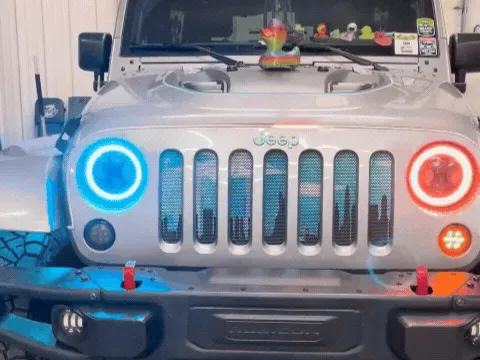

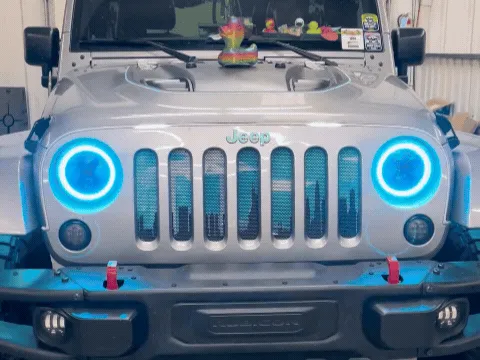

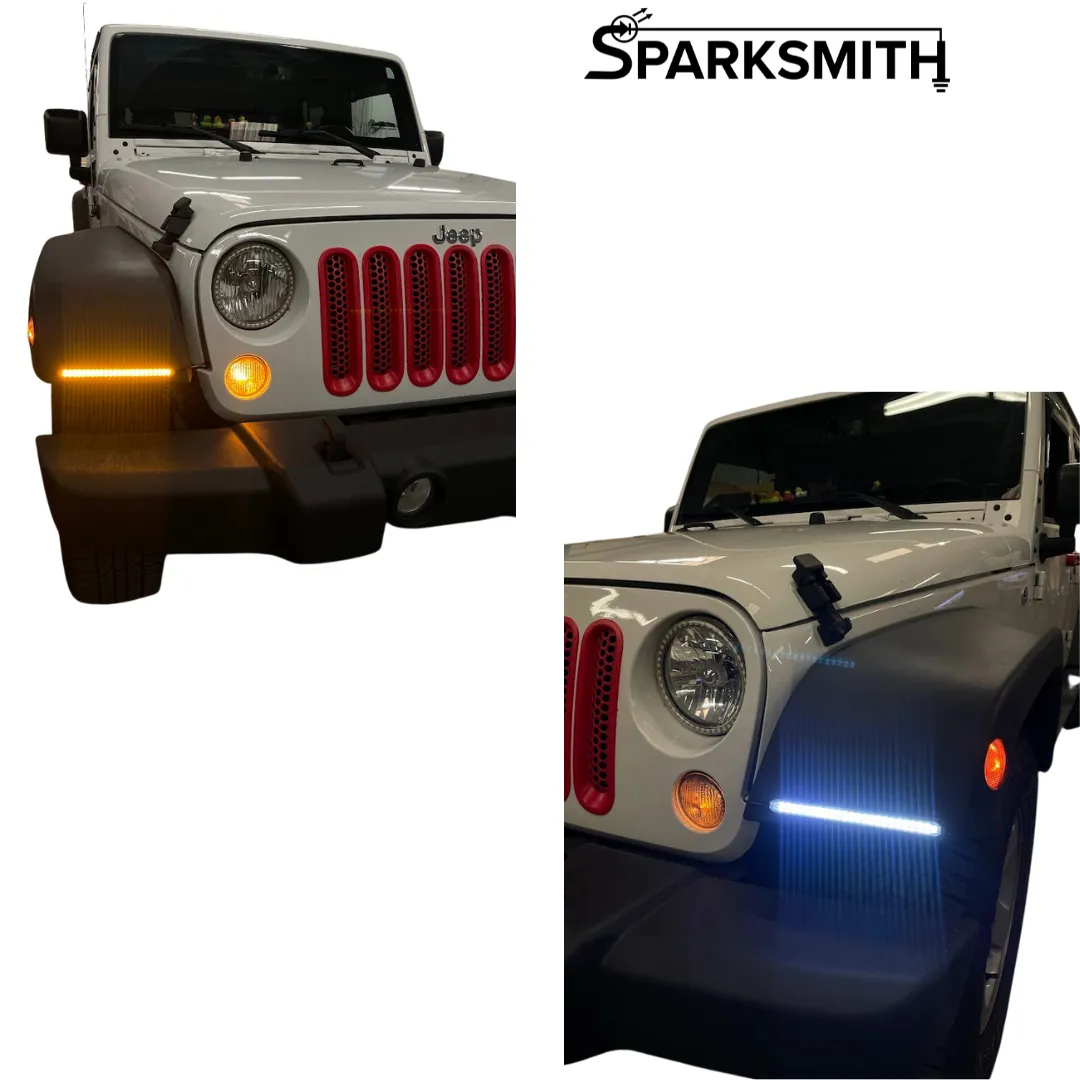

This kit will include a pair of our all-new 9" 2.0 Universal Grille Bars, featuring a white startup animation and brilliant amber sequential turn signal.

Wiring is a custom, plug & play harness that will work with any 2007-2018 JK Jeep Wrangler. The base harness has two 3157 jumpers. One goes to the driver's side (Park/Turn bulb), the other goes to the passenger side Park/Turn bulb.  Jumpers allow you to continue to run your stock park/turn signal bulbs (or upgrade to LED bulbs!). The animated bars will then get powered by the harness.

VERY IMPORTANT: USE THE INCLUDED DIELECTRIC GREASE IN THE WHITE TUBES IN YOUR STOCK SOCKETS. IF YOU DO NOT, THE CONTACTS WILL CORRODE AND THE BAR WILL STOP WORKING. THIS IS NOT COVERED UNDER WARRANTY.

That's it! No cutting, no soldering, no crimping, no modification to your stock wiring, whatsoever. What's even better? We have integrated HD Load resistors. This will allow you to run LED turn signal bulbs without the effects of . It really couldn't get any better.

Still have questions? Give us a , , , , or !

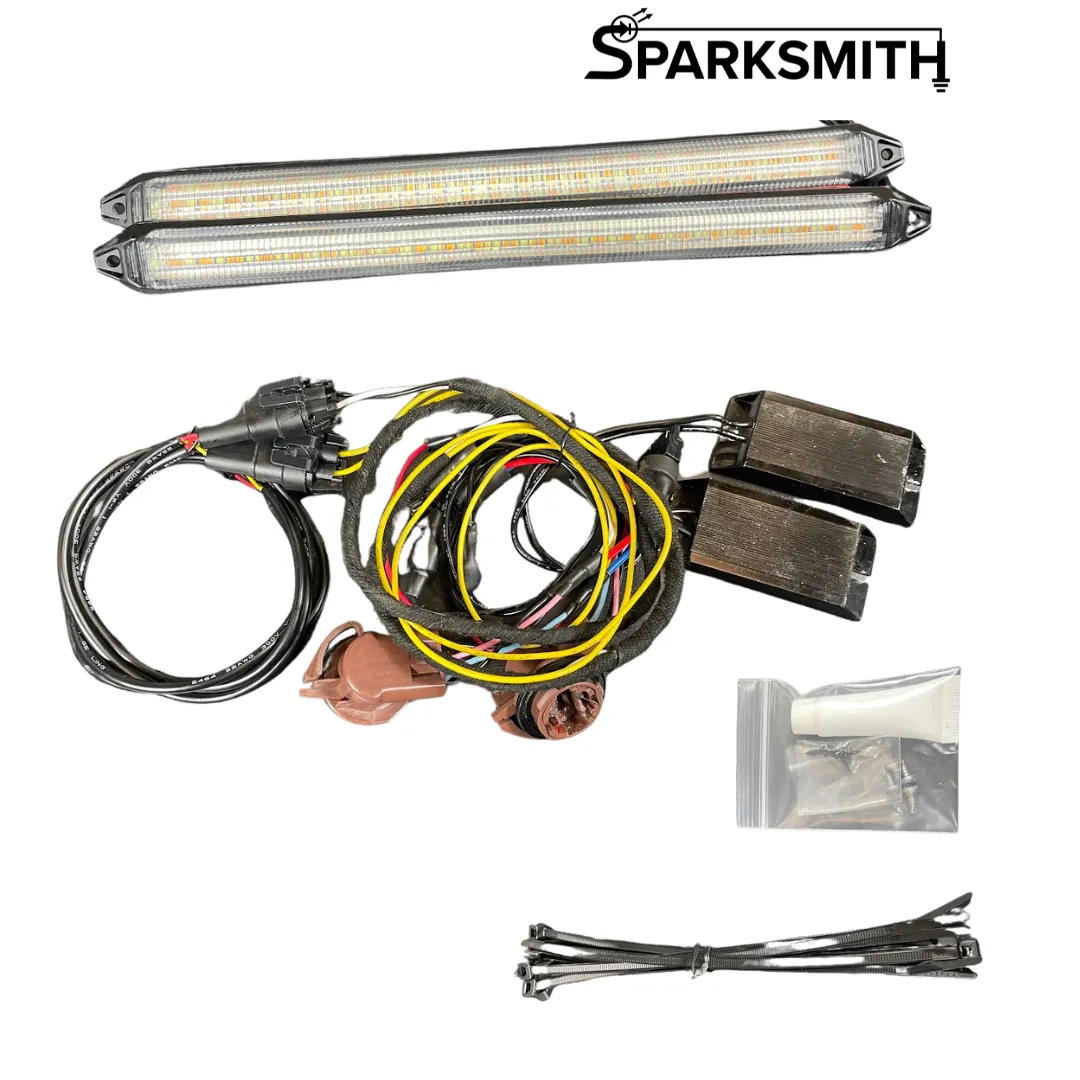

WHAT'S INCLUDED

• HOUSING: Bolt on
• LED STRIPS: 2x 9" 2.0 Animated Switchback DRL Bars
• WIRING: Complete Plug & Play harness
• HARDWARE: Stainless steel #6 screws and retaining hardware
• LOAD RESISTORS: 2x Sparksmith HD Load resistors
• WARRANTY: 3 Years

COMPATIBILITY

• JEEP: 2007 - 2018 (JK) Wrangler
• SYSTEM INPUT: /- 12V
• CONNECTIONS: 3157

TECH SPECS

• PRIMARY FUNCTION: White
• SECONDARY: Sequential Switchback
• LIGHT SOURCE: Proprietary 2835 SMD LED
• EXPECTED LIFESPAN: 50,000 hours
• BAR WIDTH: 3/4" (19mm)
• BAR THICKNESS: 1/2" (12.5mm)
• DRIVER: Integrated
• DRIVER PROTECTION: Full internal Potting
• COLOR WHEN OFF: Neutral White
